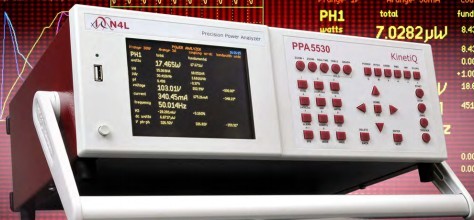

N4L PPA5530 PPA3560高精度功率分析儀
-
PPA5500多功能高精度功率分析儀
Leading wideband accuracy Basic 0.01% with class leading high frequency performance
Wide frequency range DC, 10mHz to 2MHz - PPA5500 / DC, 10mHz to 1MHz - PPA1500 / DC, 10mHz to 500kHz - PPA500Fast sample rate and No-Gap 2.2M samples/s - PPA5500 / 1M samples/s - PPA1500/500, High accuracy in noisy applicationsLeading phase accuracy 0.005 Degrees plus 0.01 degrees per kHzBuilt in high precision current shunt 10Arms, 30Arms or 50Arms with up to 1000Apk direct plus a wide range of external sensorsVersatile interfaces RS232, USB, LAN, GPIB (PPA5500) plus direct torque and speed (PPA5500)Range of PC software options Remote control, monitoring and recording of real time data, tables and graphs PPA500Series
Leading wideband accuracy Basic 0.01% with class leading high frequency performance
① FRONT USB PORTUSB memory port allows data or screendumps to be saved directly to a USB pen drive② POWER BUTTON③ DISPLAY SCREENWhite LED backlight colour TFT display with high contrast and wide viewing angle④ SCREEN DISPLAY OPTIONSZoom, Real time, Table and Graph options⑤ MEASUREMENT FUNCTION SELECTION BUTTONS
⑨PHASE INPUTS
Direct voltage Input: 3kVpk (1kVrms) in 9 ranges
Direct current Input: 300Apk (30Arms) Standard Model, 30Apk (10Arms) Low Current Model, 1000Apk (50Arms) High Current Model
External voltage and current sensor inputs to 3Vpk in 9 ranges - BNC Connector
PPA1500/500: 300Apk (20Arms) direct current input, PPA1500/500-HC: 1000Apk (30Arms)
⑩SYNC CONNECTOR
All PPA models can offer up to 9 phase analysis using the PPALoG PC program Additionally two PPA5530's can be connected via the extension port and sync BNC connector to form a 6 phase analyzer when a PC is not available (PPA5500 only)
?EXTERNAL SENSOR INPUTS
+/-10V or pulsed input from torque and speed sensors provides direct measurement of mechanical power + Analogue output (PPA5500 only)
?PC INTERFACE CONNECTIONS
Standard interfaces RS232 + USB + LAN (Optional) + GPIB (Optional on PPA5500 only)
?LOW NOISE EFFICIENT FANS
Air bearing low noise fans are utilized to ensure minimum audible and electrical noise while maintaining a stable operating temperature for the high precision low inductance internal current shunts
Frequency Range
DC,10mHz～2MHz - PPA5500-LC(10Arms), PPA5500(30Arms)DC,10mHz～1MHz - PPA5500-HC(50Arms)
300mVpk～3000Vpk(1000Vrms) in 9 ranges(240Vrms within 300Vpk range, using 20% overange)
0.01% Rdg+0.038% Rng+(0.004%×kHz)+1mV
300μVpk～3Vpk in 9 ranges 【BNC connector 3Vpk max input】
0.01%Rdg+0.038%Rng+(0.004%×kHz)+1μV
