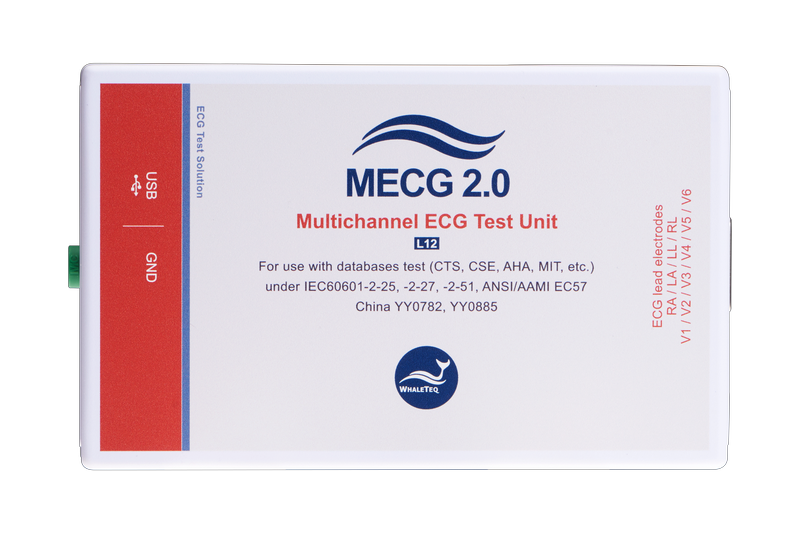

ECG性能測試儀MECG2.0 多功能檢測儀及數據庫比對分析軟件播放器
- 用 途：
- 檢測心電圖機性能,符合YY0885,YY0782,YY1079,YY1139
- MECG 2.0心電數據庫播放器
全模擬訊號輸出的ECG數據庫播放器，協助您完成系統及算法驗證，適用于研發及法規符合性測試。可直接加載及撥放各類型心電數據庫，符合國際及國內最新版標準：IEC 60601-2-25、IEC 60601-2-47、ANSI/AAMI EC57、YY0782、YY0885
產品詳情
產品簡介
全模擬訊號輸出的ECG數據庫播放器，協助您完成系統及算法驗證，適用于研發及法規符合性測試。可直接加載及撥放各類型心電數據庫，符合國際及國內新版標準：IEC 60601-2-25、IEC 60601-2-47、ANSI/AAMI EC57、YY0782、YY0885
產品特點
可供心電診斷、可攜式心電設備仿真數據庫產生器
支持12 導聯心電圖機，8 個信道同步產生數據庫訊號
內建CAL、ANE 及Biological 波形
可直接加載及播放AHA、MIT、CU 數據庫，無須格式轉換
較佳的輸出訊號準確度，電壓輸出<±8μV
提供軟件開發工具包(Software Development Kit) 讓用戶自行開發全自動化測試軟件
產品規格
Item Details / Reference Value
Output channels The 8 output channels are provided through
a network as specified in IEC 60601-2-51 to
provide signals to 10 lead electrodes; in the
device under test, this will be displayed as 12
leads. 8 outputs
10 lead
electrodes
12 leads
Voltage accuracy IEC 60601-2-51 specifies a limit of ±1%, but
does not provide a lower limit (all systems
must have a lower limit).
An inferred specification of 1% ±5μV is
derived from the device under test
specification in IEC 60601-2-51 of 5%
±25μV.
±1% for
values
greater or
equal to
500μV. ±5μV
for values
under 500μV.
Output voltage
The output voltage on most of the database
and ECG is +5mV~-5mV.
±5mV
Output noise
level 0-150Hz Output noise should not influence the test. A
value a 5μV is suitable for this requirement.
Can be verified by monitoring the signal in
the device under test using a “diagnostic”
filter setting. <5μV
Time accuracy IEC 60601-2-51 does not provide any limits.
An inferred limit from the device under test.
An inferred limit of ±1% is used (see 4.2).
The system’s design accuracy exceeds 0.1%
as a 100ppm crystal reference is used. ±1%
Sampling rate A maximum sampling rate of 1kHz matches
the sampling rates of ECG files. 1kHz
(8 channels)
Power supply Powered from the USB supply (5V 0.2A) N/A
Environment Intended for normal laboratory environment.
The selection of critical components such as
reference voltages, DAC, precision resistors
are known to be stable in the range shown. 15-30°C
10-95% RH
