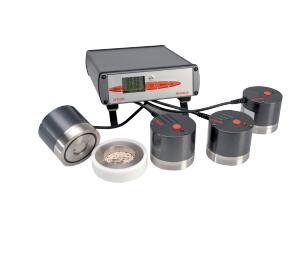

臺式水活度儀套裝 HygroLab C1-SET-40

概述

ROTRONIC臺式水活度儀套裝包含測量和校準設備

特點

臺式水活度儀套裝 HygroLab C1-SET-40

· 臺式水活度儀 (包括電源適配器 AC -> DC 12V & HW4 軟件 with Aw-Quick) : HygroLab C1

· 連接PC的USB 電纜: AC0002

· 測量艙: WP-40

· 取樣杯 (100 pc.): PS-14

· 取樣杯 (100 pc.): PS-40

· 標準溶液 0.5 %RH: EA00-SCS

· 標準溶液 10 %RH: EA10-SCS

· 標準溶液 35 %RH: EA35-SCS

· 標準溶液 50 %RH: EA50-SCS

· 標準溶液 80 %RH: EA80-SCS

技術參數(shù)

RANGE OF APPLICATION		-10…60 °C (14…140 °F) / 0…1 Aw / 0…100 %RH
POWER SUPPLY / POWER CONSUMPTION		8…16 VDC (+ AC adapter)
CURRENT CONSUMPTION		Max. 120 mA (12 VDC, backlight ON, 4 probes connected, Ethernet)
CALCULATIONS		All psychrometric calculations available or user defined calculations
PROBE CONNECTIONS		4 x HC2 station probe or HC2 insertion probe
START-UP TIME		3 s
MEASUREMENT INTERVAL		1 s
PARAMETERS SHOWN		Aw, % RH, °C, °F
LCD		3-line alphanumeric with trend indicators
CLOCK		Real time clock provides a time stamp for every measurement
MEMORY SIZE		4 x 500 Aw values (2,000 Aw values)
HW4 COMPATIBLE		V3.1 and higher
PROBE ADJUSTMENT		Single or multiple point for relative humidity & temperature.
		One or two point temperature
AW QUICK FUNCTION		Integrated and via HW4 software HW4-P-QUICK-Vx (in shipment included)
COMMUNICATION INTERFACES		Ethernet / USB
MATERIAL		Aluminum, ABS-757
IP PROTECTION RATING		IP21
FDA / GAMP		FDA 21 CFR part 11 / GAMP5
CE / EMC CONFORM		EMC 2008/108/EG
DIMENSIONS		225 x 170 x 70 mm
WEIGHT		1100 g
