美國VEROCH 萬用彈簧沖擊錘0.2-1J
- 用 途：
- 試驗錘模擬對電子產品和電氣產品的機械沖擊。
- 多檔萬用彈簧沖擊錘- VEROCH
VEROCH彈簧沖擊錘-萬用型是為產品耐久的沖擊試驗而設計的。VEROCH彈簧沖擊錘-萬用型滿足IEC60065，60335，60598，60601，61010等其他行業標準的要求。試驗錘模擬對電子產品和電氣產品的機械沖擊。這款沖擊錘是多用的—可以設置不同的沖擊能量以滿足不同測試要求。
一根壓縮彈簧給錘頭加速沖擊樣品進行測試。測試時按下錐形桿的頭部將彈簧從一個機械鎖定位置釋放。如果你想調節沖擊能量的等級這是一款理想的產品。
VEROCH彈簧沖擊錘-萬用型沖擊能量從0.2J 到1J全程可調。產品滿足IEC60068-2-75的要求。
產品特色
- 儀器依據相關標準制作而成
- 單檔萬用型號可選
- 使用高質量的材料依據正確的尺寸要求生產而成
- 提供一個緊湊的手提箱
- 綜合全面的用戶手冊
-在美國本土認可的實驗室出具產品檢測報告
參數
整體長度 217mm ± 2mm
直徑 50mm ± 0,5mm
沖擊頭硬度 100 Rockwell
沖擊頭材料 聚酰胺
沖擊頭半徑 10 mm
沖擊能量 0,14J – 1J. 可調
整體重量 1,25 Kg. ± 0,03 Kg
釋放桿重量 0,06 Kg. ± 0,001 Kg
沖擊元件重量 0,25 Kg. ± 0,01 Kg

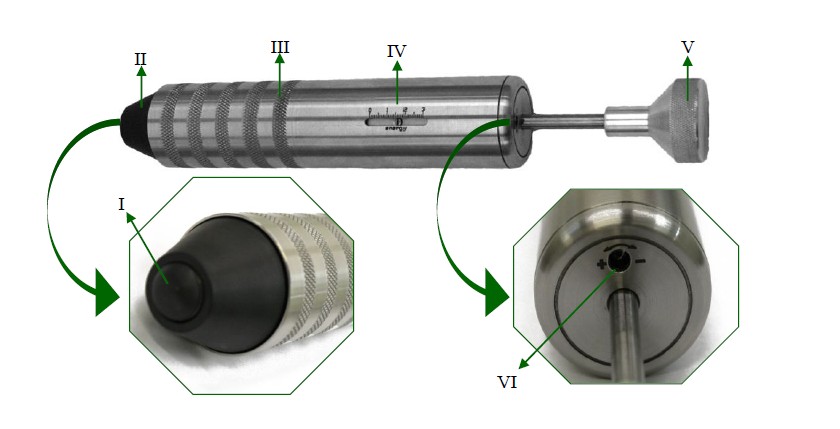

Impact Spring Hammer Universal
The VEROCH Impact Spring Hammer - Universal is designed to perform impact tests for product durability. The VEROCH Impact Spring Hammer - Universal meets the testing needs of industry standards such as IEC 60065, 60335, 60598, 60601, 61010 among others. The hammer simulates mechanical impact to electronic products and electrical appliances. This Universal impact hammer is versatile -- it can be set up to attend different energy values performing many different tests.
A compressed spring accelerates a hammer head to hit the sample undergoing test. The spring is released from a lock mechanism by pressing the cone-shaped top of the impact hammer against the product under test. This version is ideal if you need to adjust the energy level.
The VEROCH Impact Spring Hammer ?- Universal is adjustable from 0.20 Nm to 1Nm (joule) allowing full range of test settings. This product meets requirements of IEC 60068-2-75.
FEATURES
- Instrument manufactured according to the relevant standards
- Single and Universal models available
- Produced with high quality material and correct dimensions
- Supplied in a compact carrying case
- Comprehensive user manual
- Calibration Report issued by accredited LAB located in US territory
Specs
Body Length 217mm ± 2mm
Diameter 50mm ± 0,5mm
Hammer head Hardness 100 Rockwell
Hammer head material Polyamide
Hammer head radius 10 mm
Impact energy 0,14J – 1J. adjustable energy
Weight of body 1,25 Kg. ± 0,03 Kg
Weight of release cone 0,06 Kg. ± 0,001 Kg
Weight of striking element 0,25 Kg. ± 0,01 Kg
