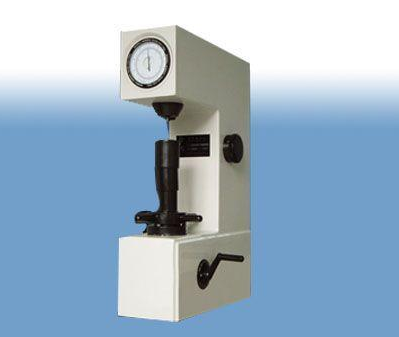

塑料洛氏硬度計FR-2927
- 用 途：
- 專門測試非金屬塑料、硬橡膠、合成樹脂、摩擦材料及較軟金屬的硬度計
- 塑料洛氏硬度計FR-2927硬塑料、硬橡膠，鋁、錫、銅、軟鋼、合成樹脂及磨擦材料等。
XHR-150 Plastics Rockwell Hardness Tester adopts motorized testing method. Its testing force can be loaded, kept and unloaded automatically. Avoid man-made error and easy to use. It is therefore, welcomed by many users.
Usage Range:
Hard plastics, hard rubbers, aluminum, tin, copper, soft steel, synthetic resins, fricative materials, etc.
技術數據（Technical Specifications）
塑料洛氏標尺
( Plastics Rockwell Scales)
HRE, HRL, HRC, HRM, HRR
初試驗力（Initial Testing Force）
10Kg (98.07N)
試驗力（All Testing Force）
60Kg (588N), 100Kg (980N), 150Kg (1471N)
硬度讀取
(Indication of Hardness Value)
表盤式（Dial ）
保菏時間(Duration Time)
2 ~ 60S
試件**高度
Max. Height of Specimen
170mm
儀器尺寸(Overall Dimension)
520X240X700MM (長X寬X高, LXWXH)
儀器重量(Net Weight)
80 Kg
電源( Power Supply)
AC220V + 5%, 50~60 Hz
執行標準 (Carried Standard)
GB7407 **標準、JJG884檢定規程
GB/7407 Chinese Standard and JJG884 Inspection Rule
標準配件、附件
(Standard Accessories)
直徑3.175、6.35、12.7mm球壓頭，大平試臺、中平試臺、V型試臺、硬度塊(4)，電源線
Diameter 3.175, 6.35, 12.7mm Ball Indenter, Large Testing Table , Medium Testing Table and V-shaped Testing Table, 4 pcs Hardness Blocks , Power Cable
