光柵分光測色儀YS4510
產品介紹（中文）

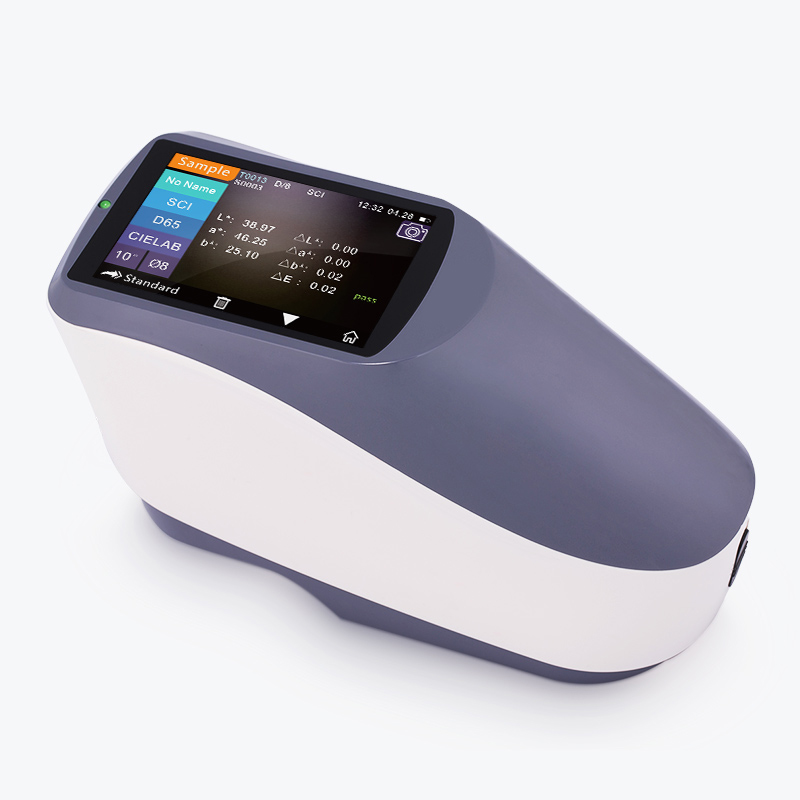

光柵分光測色儀YS4510簡介
YS4510通用型分光測色儀采用符合CIE No.15的45/0（45度環形照明，0度接收）幾何光學結構，采用凹面光柵分光方式，可準確測量樣品反射率及各種色度數據。用戶可根據樣品需求定制單一Φ8、Φ4、或Φ2mm測量口徑,用于交通路標、塑膠電子、油漆油墨、紡織服裝印染、印刷、陶瓷等行業準確顏色測量和品質控制。
在CIE推薦的45/0幾何光學照明條件下，該儀器可準確測量樣品/熒光樣品的反射率數據，在多種顏色空間下，能夠對各種色差公式、顏色指數進行準確測量和表述。借助該儀器可輕松實現顏色的準確傳遞，也可做為準確配色系統的檢測設備。該儀器在在各類產品的色差品質管控方面也有廣泛的應用。儀器配有高端顏色管理軟件，連接電腦使用，實現更多功能擴展。
光柵分光儀可輕松實現顏色的準確傳遞，也可做為準確配色系統的檢測設備;用于交通路標、塑膠電子、油漆油墨、紡織服裝印染、印刷、陶瓷等行業準確顏色測量和品質控制。
光柵分光測色儀YS4510特點
a.優美的外觀造型與符合人力力學的結構設計完美結合；
b.45/0幾何光學結構，符合CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7，GB 2893、GB/T 18833；
c.采用高壽命低功耗的組合LED光源，包含UV/排除UV（部分型號）;
d.Φ2/4/8mm單一定制口徑任意選擇，適應更多被測樣品;
e.測量樣品光譜,Lab數據準確，可用于配色和準確顏色傳遞;
f.電子硬件配置高:3.5吋TFT真彩屏,電容觸摸屏,凹面光柵，256像元雙陣列CMOS探測器等；
g.USB通訊模式，適應性更廣；
h.超級耐臟、穩定的標準白板;
i.大容量存儲空間，可存儲20000條以上測試數據
j.兩種標準觀察者角度，多種光源模式，多種表色系，符合多種標準的色度指標，滿足各種客戶對顏色測量的需求；
k.PC端軟件有功能強大的功能擴展；
l.內置標樣多邊形容差設置和特定交通路標色域，特別適合交通路標亮度因數和色度性能判定。
技術參數（中文）
產品型號 YS4510
照明方式 45/0(45環形均勻照明0°接收);
符合標準CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
特性 通用型分光測色儀，通用Φ8測量口徑,用于塑膠電子、油漆油墨、紡織服裝印染、印刷、陶瓷等行業準確顏色測量和品質控制。
積分球尺寸 Φ48mm
照明光源 組合LED光源
分光方式 凹面光柵分光
感應器 256像元雙陣列CMOS圖像感應器
測量波長范圍 400~700nm
波長間隔 10nm
半帶寬 10nm
反射率測定范圍 0~200%
測量口徑 定制單一口徑：MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm；SSAV:Φ2mm/Φ3mm；
顏色空間 CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy
色差公式 ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter）
其它色度指標 WI(ASTM E313，CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925，ASTM 313),
TI(ASTM E313，CIE/ISO),
同色異譜指數MI，
粘色牢度,變色牢度,力份,遮蓋度
觀察者角度 2°/10°
觀測光源 D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30)
顯示 光譜圖/數據，樣品色度值，色差值/圖，合格/不合格結果，顏色偏向
測量時間 約1.5s
重復性 分光反射率：MAV,標準偏差0.1%以內（400~700nm：0.2%以內）：
色度值：MAV,ΔE*ab 0.05以內（儀器預熱校正后,以間隔5s測量白板30次平均值）
臺間差 MAV,ΔE*ab 0.2以內（BCRA系列Ⅱ 12塊色板測量平均值）
測量方式 單次測量，平均測量（2~99次）
尺寸 長X寬X高=184X77X105mm
重量 約600g
電池電量 鋰電池，8小時內5000次
照明光源壽命 5年大于300萬次測量
顯示屏 TFT 真彩 3.5inch，電容觸摸屏
接口 USB
存儲數據 標樣500條，試樣20000條
語言 簡體中文，English
操作溫度范圍 0~40℃，0~85%RH（無凝露），海拔：低于2000m
存儲溫度范圍 ?-20~50℃，0~85%RH（無凝露）
標準附件 電源適配器、數據線、內置鋰電池、說明書、品管軟件（官網下載）、黑白校正盒、保護蓋
可選附件 微型打印機、粉末測試盒、多功能測試組件
注： 技術參數僅為參考，以實際銷售產品為準
產品介紹（?英文）
YS4510 standard spectrophotometer?with 45/0 geometrical optics structure( 45 ring-shaped illumination ,vertical viewing), ?comply with C I E N o . 1 5. Adopting concave grating light splitting method. accurately measure the reflectivity and various chromaticity data of samples. users can customize the measurement aperture(Φ 8 / Φ 4 / Φ 2 m m) according to the sample measuring demands, meet the industry accurate color measurement and quality control.
?
The grating spectrophotometer can easily achieve the accurate transmission of color, and can also be used as the detection equipment of the accurate color matching system; it is used for accurate color measurement and quality control of traffic road signs, plastics, electronics, paint and ink, textile and garment, printing and dyeing , ceramics and other industries.
PRODUCT?FEATURES?
1.Perfect combination of beautiful appearance and the human body mechanics structural design;
2.45/0?geometrical optics, conforms with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7，GB 2893、GB/T 18833;?
3.Use long life and low power consumption combined LED light source;
4.Optional?aperture2mm/4mm/8mm, support both SCI and SCE at the same time;
5.?Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
6.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
7.USB port, widely useful;
8.Super stain-resistant and stable standard white calibration plate;
9.Large capacity storage space, over 30,000 measurement data;
10.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;
11.PC software has a powerful function extension.
12.Built - in multi - description of standard samples and specific traffic sign color gamut, especially suitable for traffic sign brightness factor and color performance.
技術參數（英文）
Model YS4510? 45/0 Spectrophotometer
Illumination/Observation system 45/0(45 ring-shaped illumination, vertical? viewing);
Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Features Common spectrophotometer with customized one aperture, like 8mm aperture and apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size Φ48mm
Light Source Combined LED Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Measuring Aperture Customized One Aperture：MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm；SAV:Φ2mm/Φ3mm；
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter）
Other Colorimetric Index WI(ASTM E313，CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925，ASTM 313),
TI(ASTM E313，CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30)
Display Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph,?Pass/Fail Result, Color Offset
Measurement Time About 1.5s
Repeatability Spectral reflectance: MAV, standard deviation within 0.1%(400~ 700nm: within 0.2%)
Chromaticity value: MAV, within△E*ab 0.05(After calibration, measure the average value of the white board 30 times each 5S.)
Inter-instrument agreement ?MAV, ?within△E*ab 0.2(Average value for 12 BCRA series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB
Data memory Standard 500 Pcs, Sample 20000 Pcs
Language Chinese,English
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional Accessory Micro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.
