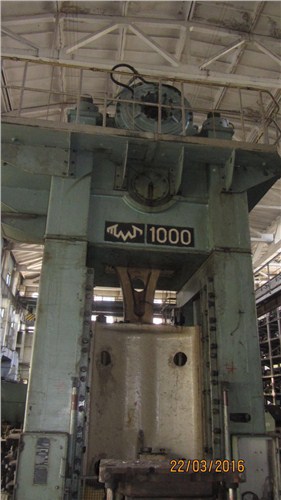

К2540閉式單點壓力機參數

 （溫州鼎翔機電有限公司出售：姜林18606777707）

壓力機的額定壓力                                                1000

滑塊的行程                                              MM      400

滑塊一分鐘行程數                                                  16

工作臺和滑塊的距離調節                                   MM     200

工作臺尺寸             從左到右                          MM    1500

                       從中到前                          MM    1500

滑塊尺寸               從左到右                          MM    1250

                       從中到前                          MM    1250

孔的尺寸               從左到右                          MM    1000

                       從中到前                          MM    1000

滑塊上孔的尺寸         直徑                                       75A

                       深度                                       90

支柱上孔的尺寸         高                                 MM     750

                       寬                                 MM    1150

                      水平距的高度                        MM     400

水平距工作臺高度                                          MM     400

沖壓地平板厚度                                            MM     220

液壓底座

                      行程                                MM     200

                      夾具壓力                            TC      230

                      伸出壓力                            TC       14

主電機

                      型號                                AOC2-92-4

                      功率                                KBT  77

                      每分轉數                                 1400

壓力機的平面尺寸    從左到右                            MM   4180

                    從中到前                            MM   3800

壓力機在地平面上的高度                                  MM   6950

壓力機的總高度                                          MM   11490

壓力機重                                                KГ   86000
