REMARKS
APM-00-015
apm-8

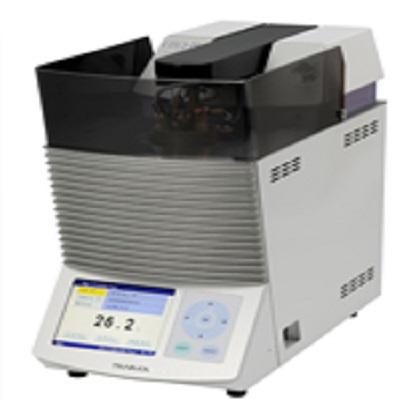

Pensky-Martens Closed Cup Flash Point Tester 賓斯基-馬丁閉口杯法閃點試驗儀
標準附件
CODE
PART NAME
Qty
REMARKS
APM-02-001
Test Cup Assembly 油杯
1
320-00-035
Thermofuse 熱熔絲
1
Pack of 5, with Insulation Tube. 5只裝，帶絕緣管
210-02-161
Gas Hose ?9 x ?16, 1.5m with Hose Bands 帶夾箍煤氣管
1
APM-04-431
Windscreen for apm-8 擋風罩
1
―――
apm-8 MANUALS 操作手冊
1
Manuals for apm-8.
選購附件
CODE
PART NAME
REMARKS
070-00-068
Printer, BS2-80TS
BS2-80TS型打印機
Prints out test data and instrument settings. 儀器設置和試驗數據的打印
070-00-281
Mini USB Keyboard 迷你USB鍵盤
Sample ID entering 樣品名輸入
2年備件選購
CODE
PART NAME
Qty
APM-02-001
Test Cup Assembly 油杯
1
320-00-035
Thermofuse 熱熔絲
1
ABL-01-003
Electric Igniter, EI-8 電子點火頭
2
APM-04-031
Temperature Sensor for apm-8 溫度傳感器
1
APM-03-032
Flash detector for APM-7/apm-8
1
儀器特點
1.SINGLE ACTION SETTING單一動作設定
The flash detector rings and the temperature sensor are permanently mounted on a swing-arm assembly, which allows an easy setting of the specimen閃點檢測環和溫度傳感器一起組裝在測試搖臂上，加樣便捷
2. EASY OPERATION 操作簡單
Select a test mode and enter the expected flash point; while the instrument executes the test, you are free to do other lab work. The instrument follows the exact procedures prescribed in the test method, and the completion of the test cycle is signaled by beeps. The test result is brightly shown on the color LCD module.只需選好試驗模式，輸入預期閃點，儀器就嚴格按照標準自動進行測試，實驗結束蜂鳴報警，顯示試驗結果。
3.INTERCHANGEABLE IGNITION SOURCE 可互換的點火源
apm-8 is equipped with both gas and electric igniter as the ignition source. It only takes a few minutes to switch from gas to electric or vice versa.
氣、電點火兩用，切換便捷
4. DRAFT PROTECTION SHIELD COVER 保護罩
A FM4910 conforming cover insures the flame integrity. This material shall meet the numerical criterion of each index. (1)FPI(Fire Propagation Index)≤6 (2)SDI(Smoke Damage Index)≤0.4
********************************************************************************************************
5. DATA HANDLING 數據處理
The unit is equipped to store up to 200 test results and export to an optional printer or to a LIMS through an RS-232 port or USB memory.
試驗結果可以保存200個，試驗結果可以選購打印機打印，也可以通過USB, RS-232將數據導出到LIMS。
6. USB PORT USB接口
A USB port allows connecting USB keyboard for easy entering sample name and connecting USB flash memory for data copy to a PC or test conditions/parameters copy to the tester.
USB接口可以接USB鍵盤（選購件）用于樣品名稱的輸入，也可以接閃存copy試驗參數
6.PASSWORD PROTECTION 密碼保護
With setting up password by the administrator, the device is protected against inadvertent change of parameters by the operator.
試驗程序有密碼保護功能，可以防止誤操作
7. ALL-IN ONE DESIGN IN LIGHTWEIGHT 輕盈的一體式設計
The all-in-one design is much lighter than old model, APM-7 by approximately 30%, which is world's smallest class in volume.
比APM-7輕30%左右，也是全球體積最小的賓斯基-馬丁閉口杯法閃點試驗儀
規格
機型
一體式設計，微處理器控制
試驗標準
ISO 2719, ASTM D93, GB/T261
測試范圍
室溫到370℃
測試模式
標準模式
特殊模式
加熱部
帶式加熱器
冷卻裝置
強制風冷
顯示
5.7英寸彩色液晶顯示
攪拌
100,250rpm(可選)
溫度傳感器
帶不銹鋼襯套的PT-100
閃點檢測器
CRC 熱電偶
點火源
氣、電點火
大氣壓修正
通過內置的壓力傳感器自動補正
接口
RS-232C = 1
USB=1
安全設置
以下情況儀器停止運行，同時蜂鳴報警，屏幕顯示
(a)高于預設閃點20℃以上或超過370℃時
(b)溫度傳感器故障
(c),閃點檢測傳感器故障
(d),熱熔絲斷開
(e)內置電池電能耗盡
(f) 檢測臂未到位
(g)微機失控
(i)攪拌電機停轉
氣源（使用氣點火時）
液化氣或天然氣（不超過10kpa）
電源
220/240 VAC, 50/60Hz
功率
最大720W
能耗
170Wh for 1 test
環境溫度
10°Cto 35°C
外形尺寸
230mm(W) ×470mm (D) ×390mm (H) 17kg
